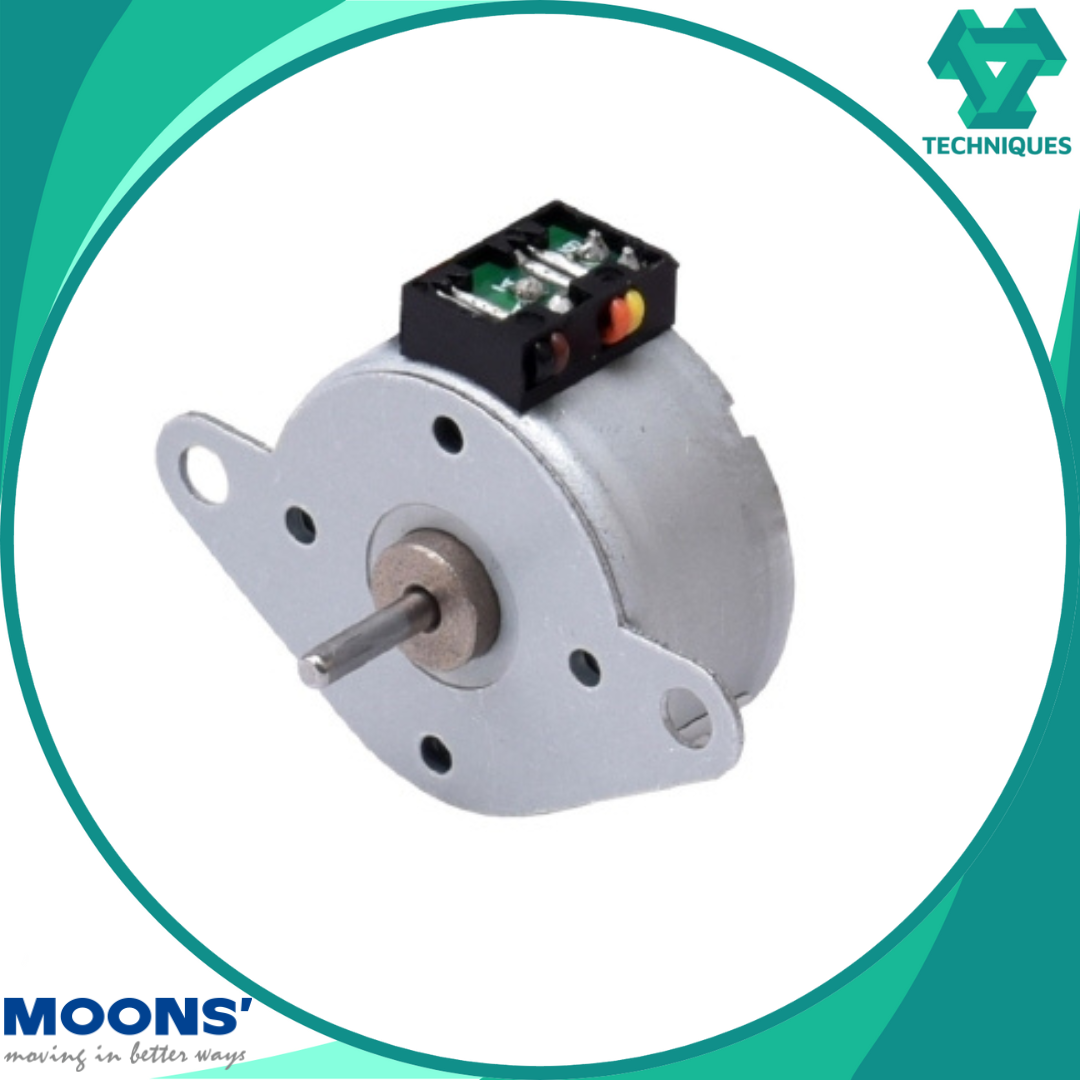

Moon’s 25mm Permanent Magnet Stepper Motors

Miniature Permanent Magnet DC Stepper Motor, Small Size, 25mm Diameter, 2 phase

● Permanent Magnet Stepper Motor
● 5V,7V, 12V or 24V voltage ratings are offered
● Up to 3.8 oz-in of Bipolar Holding Torque
● RoHS Compliant

Specification

Phase	2
Insulation Class	B, 130°C
Insulation Resistance	100 MegOhms
Axial Load	1N
Radial Load	5N
Operating Temp.	-20°C ~ +50°C
IP Rating	IP 40
Approvals	RoHS

25PM Permantent Magnet Stepper Motors

Length mm(in.)	Model Number	Step Angle	Rated Current	Holding Torque		Winding	Detent Torque		Rotor Inertia	Motor Weight
Length mm(in.)	Single Shaft	°	Amps	mNm	oz-in	Ohms±10%@20℃	mNm	oz-in	g cm²	kg	Lbs
12.5mm(0.49in.)	25PM024S0-00601	15°	0.5	10	1.39	6	2.5	0.35	0.56	0.03	0.066
	25PM024S0-01602	15°	0.32	11	1.53	16	2.5	0.35	0.56	0.03	0.066
	25PM048S8-00601	7.5°	0.5	16	2.22	6	2.5	0.35	0.56	0.03	0.066
	25PM048S8-01601	7.5°	0.32	16	2.22	16	2.5	0.35	0.56	0.03	0.066
17mm(0.67in.)	25PM024L6-00801	15°	0.47	17	2.36	8	2.5	0.35	0.85	0.039	0.086
	25PM024L6-01401	15°	0.35	18	2.5	14	2.5	0.35	0.85	0.039	0.086
	25PM048L8-00801	7.5°	0.47	25	3.47	8	4.5	0.63	0.85	0.039	0.086
	25PM048L8-01401	7.5°	0.35	27	3.75	14	4.5	0.63	0.85	0.039	0.086
