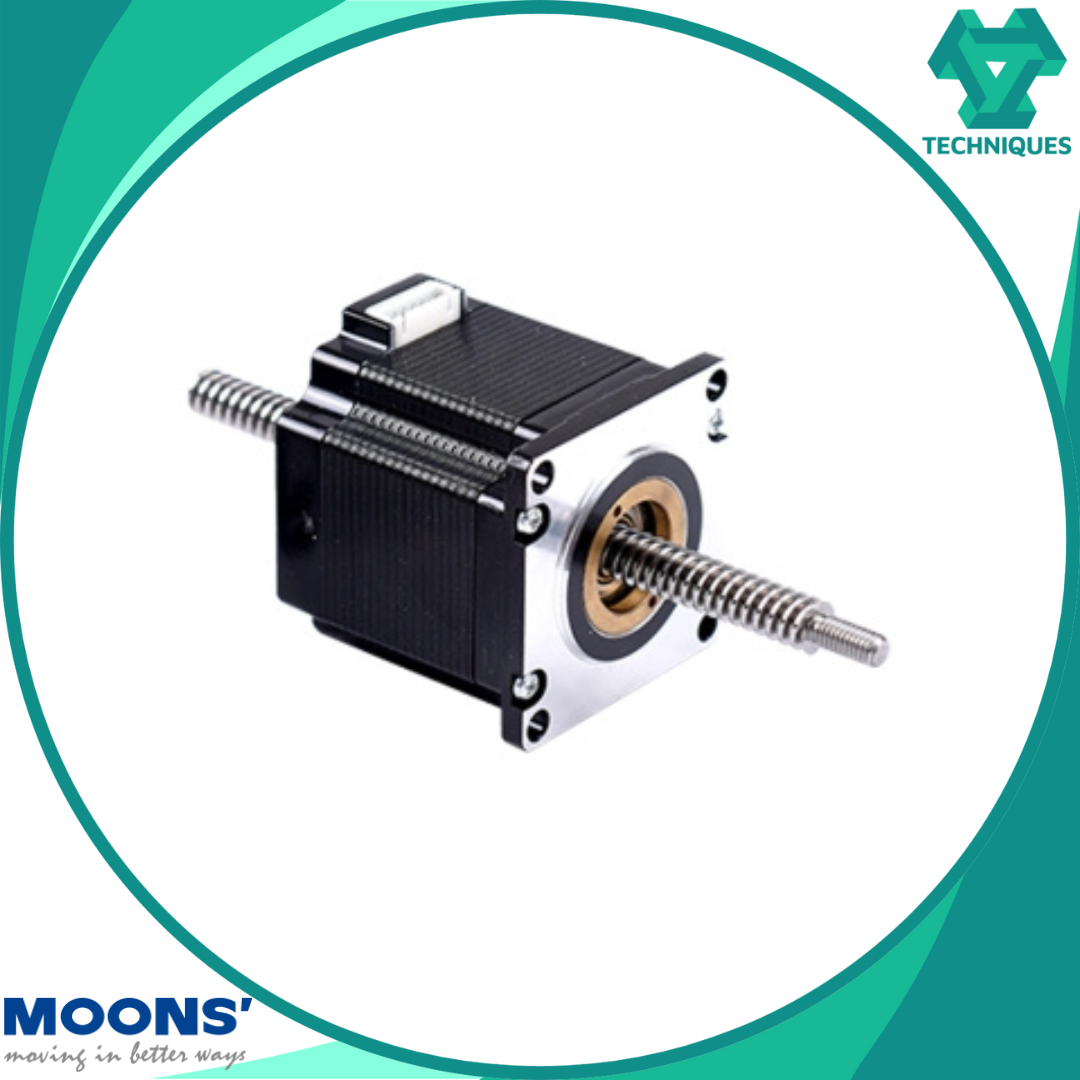

Moon’s NEMA23 Non-captive Hybrid Linear Stepper Motors

In the case of linear actuators without linear guide (non-captive linear stepper motors), a lead screw nut is integrated into the motor rotor, and the lead screw passes through the center of the motor. As the motor rotates it moves linearly along the lead screw. the lead screw can be completely unscrewed from the motor and can be any length. The motor can be fixed so that the screw moves in out of the motor, or the lead screw can be fixed so that the motor moves along the lead screw. in addition, the unique LNSM series can be compatible with clearance nut and more screw options.

High Performance

The excellent winding of NEMA23 non-captive linear stepper motors design makes the temperature rise of the motor lower and the output torque is greater; the excellent structural design makes the motor longer life and better heat dissipation.

Precision Screws

MOONS’ works with leading providers to source high-precision lead screws. With screw diameters up to 10 mm and lead starting at 1mm/rev, the linear stepper motors can be customized with a wide range of stroke lengths, leads, end machining.

High Repeatibility

The repetitive positioning accuracy of the lead screws and the standard nut of the linear stepping motor is ±0.05, and it can reach ±0.02 with the anti-backlash nut. Ideal for applications that require precise positioning (such as feed, pick and place, axis setting, etc.) and force control applications (such as clamping and tensioning).
Once you have chosen your type of linear stepper motor, you can use the article number to check whether the desired product meets your requirements:

LN Series Standard Models for stock
