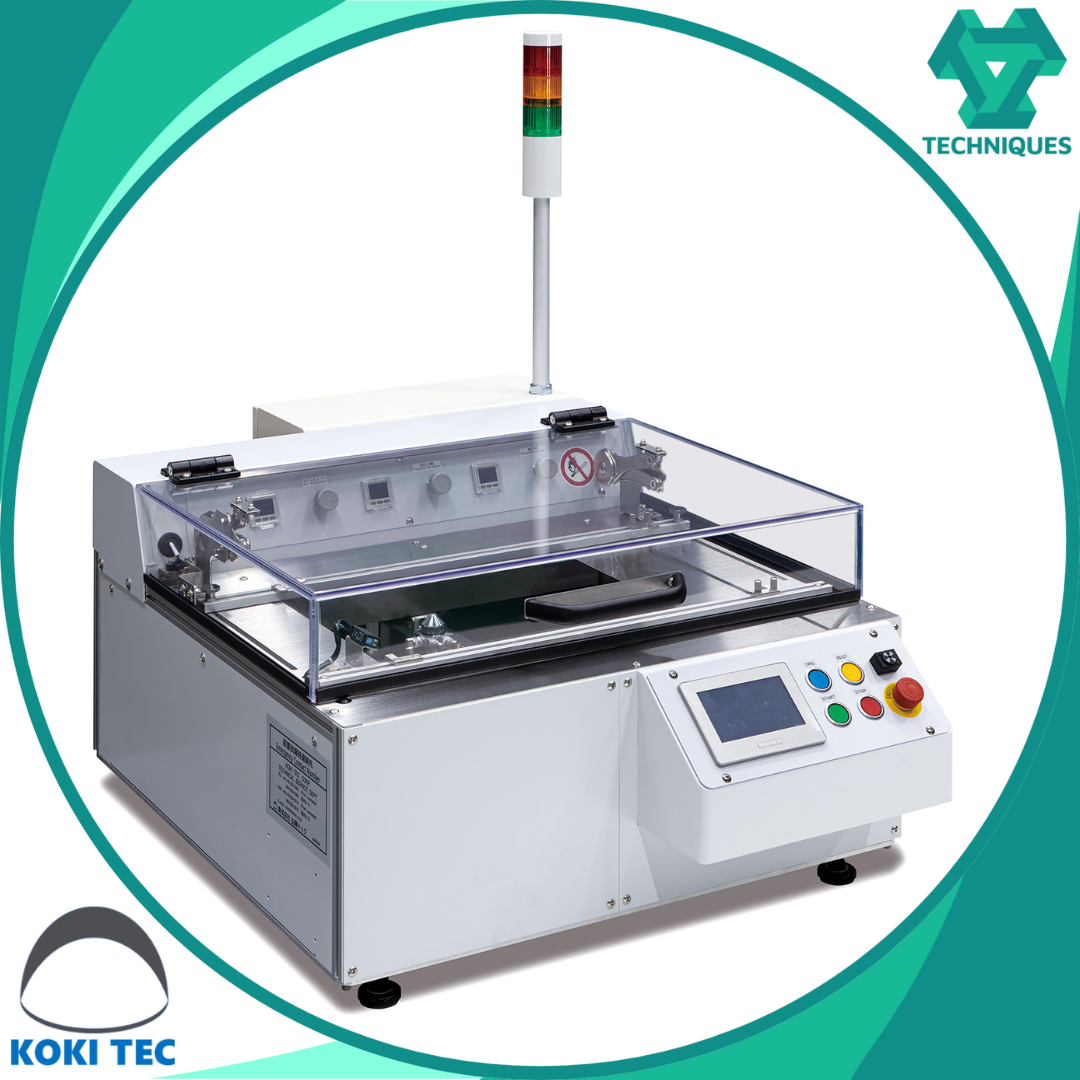

Selective Soldering Benchtop ULTIMA-SPZ Spray Fluxer SpROBO KOKI

Feature

Featuring high spec functions with standard type low price.
Options that were selectable only for high spec models are included as standard spec for this model.
As with conventional Takurobo, full data compatibility is possible by using Takumoni control application.
By using Solder Wave Height Automatic Control System, it becomes possible to maintain more stable flow height (Option)
A large-color touchscreen mounted, easy to see and operate.
By adopting the absolute method, omitting the origin return operation and starting immediate operation.
Enriched interface environment with peripheral devices

ULTIMA-SPZ

Outer Dimensions: W630 × D910 × H390 (mm)
PCB Size: X50 × Y50 ‒ X330 × Y250 (mm)
Machine Weight: Approx. 60 Kg
Power Source: Single-phase 100V-220V
Air: 0.4-0.5MPa
Flux Tank Capacity: 0.3-0.4L
Fluxer: Two-fluid nozzle
