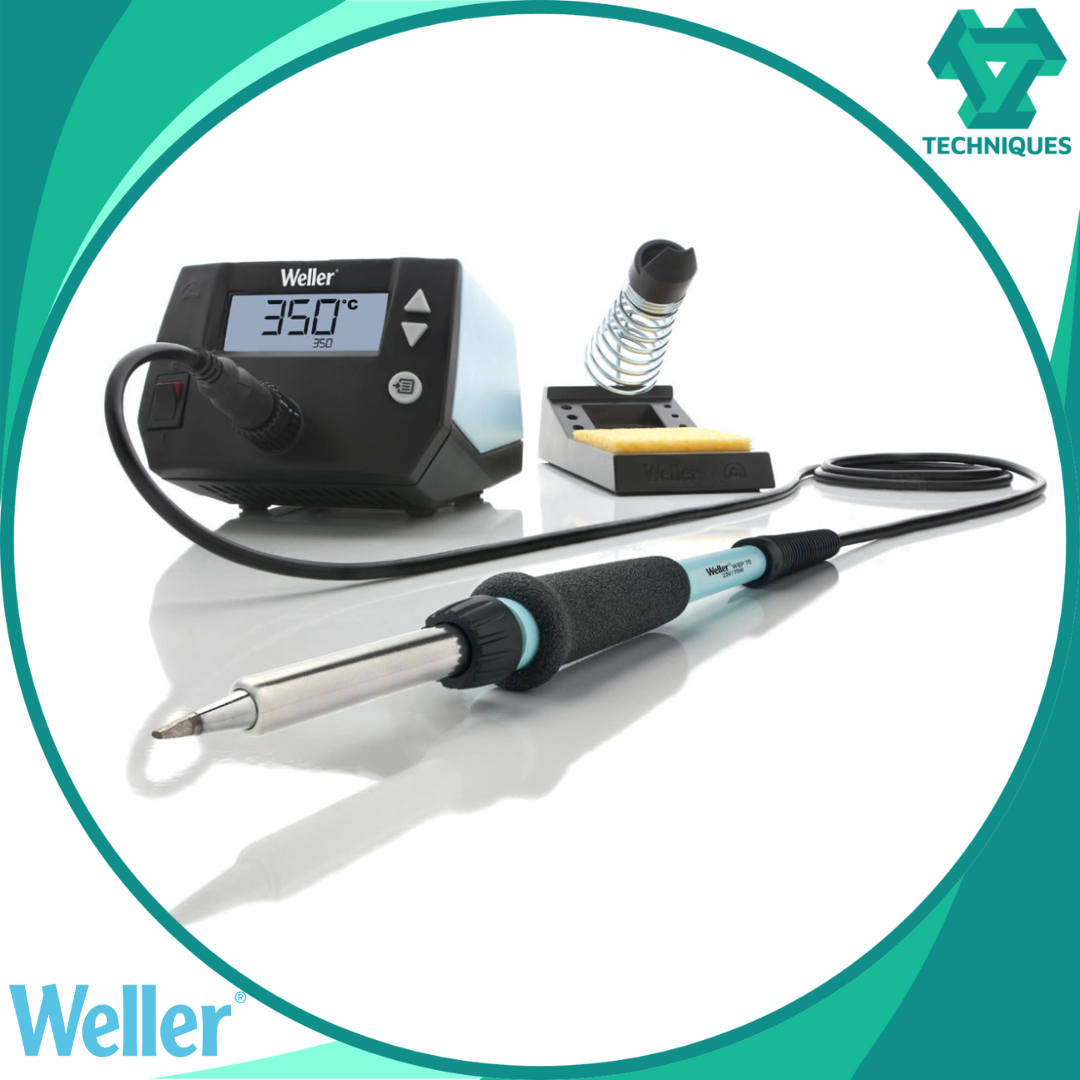

WELLER Soldering Station WE1010 Set 230V

1-Channel Power Unit, digital, 85 W

Product features

Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
70 W solder iron with ergonomic handle and providing toolless tip change
ESD safe station, iron and heat-resistant silicon cable for safe handling
Using ET soldering tips
Standby mode and auto setback conserves energy, protects equipment
Password-protected to preserve settings
Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.
Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.

Technical data

Height	98mm
Length	150mm
Dimensions L x W x H	150.0 x 120.0 x 98.0mm
Approximate Heating Time (50–350 °C/120–660 °F)	28 sec
ESD Safe	Yes
Number of Channels	1
Power	85 W
Temperature Accuracy °C	± 5°C
Temperature Accuracy °F	± 9°F
Temperature Range (Depends on Tool)	Adjustable from 100°C – 450°C (200°F – 850°F)
Temperature Range °C	100 – 450 °C
Temperature Range °F	200 – 850 °F
Temperature Stability °C	± 6°C
Temperature Stability °F	± 10°F
Tip Type	ET
UPC	4003019439973
Voltage	230V
Weight (Catalog)	1.40 kg
Product Family	WE Line Soldering Stations
